The SBT-140 stainless steel bin tipper can be configured to handle American, European, and Australasian style of bins, up to 140 litre (35 gallons).

Features of the SBT-140 stainless steel bin tipper

To view the spinner model:

  • Use your left mouse button to spin the model.
  • Use your right mouse button to move it.
  • Use your mouse wheel to zoom in or out.
  • Click on a number to see details of that feature.

Benefits

  • Fits through standard doorways
  • Stainless steel construction
  • Battery operated with a full week of operation in between charges
  • Lifts up to 70 kg (150 lb)
  • Can be configured to handle USA bins up to 35 gallon and European and Australasian bins up to 140 litre

Features

  • Waterproof toggle switches
  • Available with a full cage with interlocking door
  • Waterproof charger incorporated
  • Cut off switch has removable key to prevent unauthorized use
  • Lifetime expectancy of 15 to 25 years
  • Emergency cut off switch
  • Typical lifting capacity on full charge: 17 tonne (37,000 lb), or about 700 lifts
  • 3 year warranty on parts except batteries

Although designed for depositing organic waste into the LFC-300 biodigester or the LFC-500 biodigester, the SBT bin tipper is not restricted to these applications.

Technical Specs

Construction

All stainless steel (chassis, panels, wheels)

User Control

Waterproof toggle switches: on“off, up“down
(Both must be activated for tipper to operate)

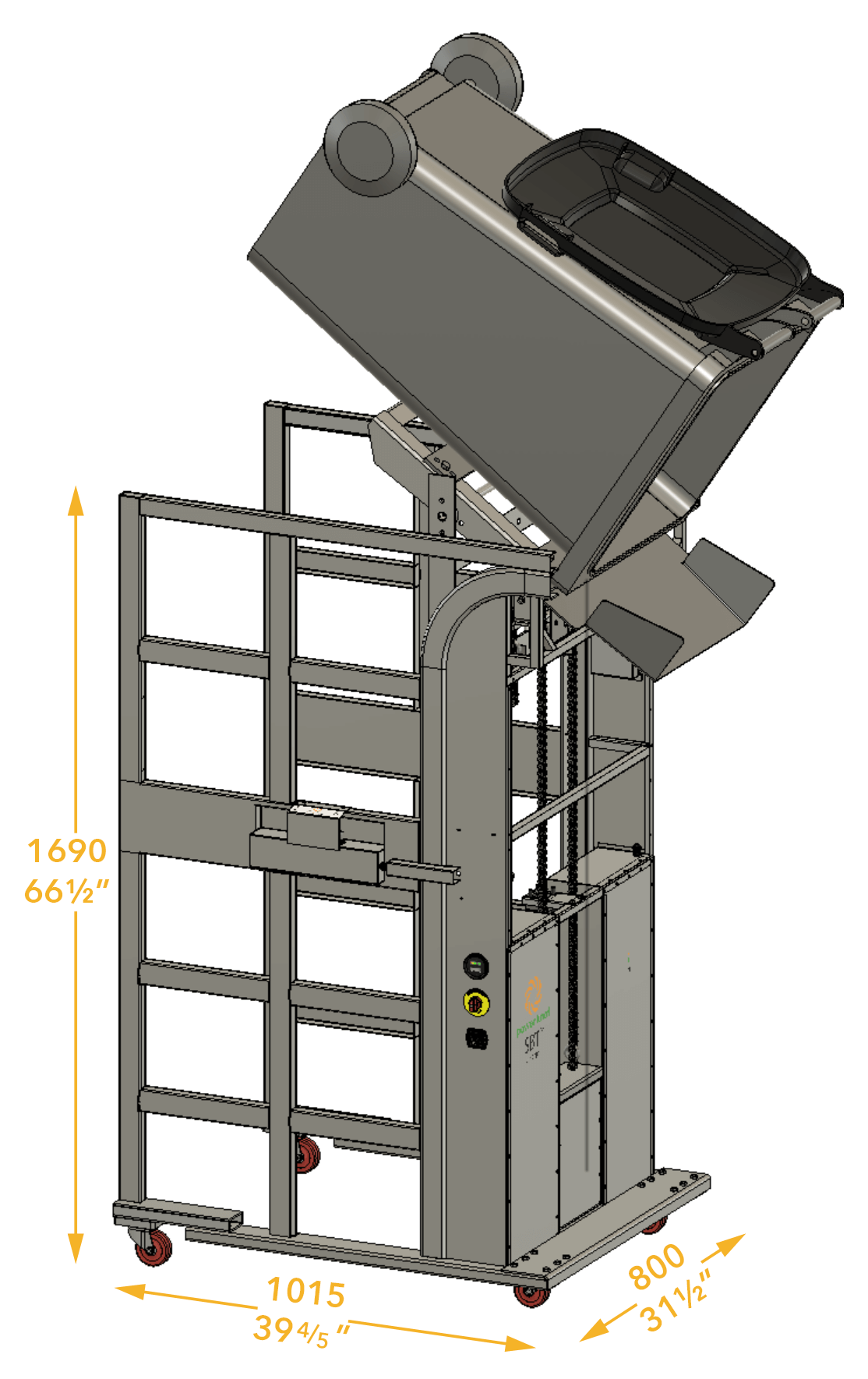

Dimensions

Without bin: 800 × 1015 × 1630 mm (31 ½ × 40 × 64 in)
With bin: 800 × 1015 × 2560 mm (31 ½ × 40 × 101 in)

Fill out the form below for the SBT-140 bin tipper data sheet.
